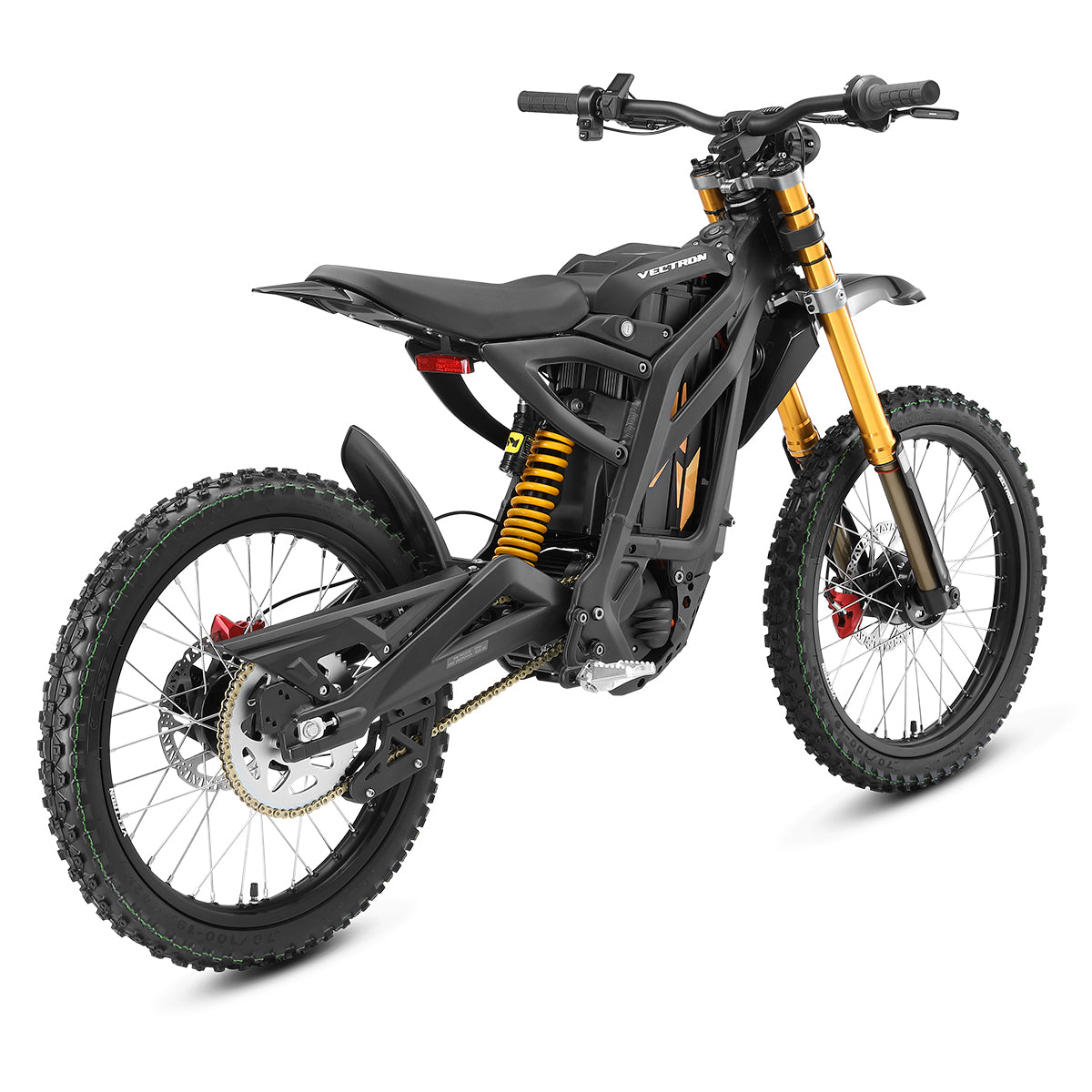

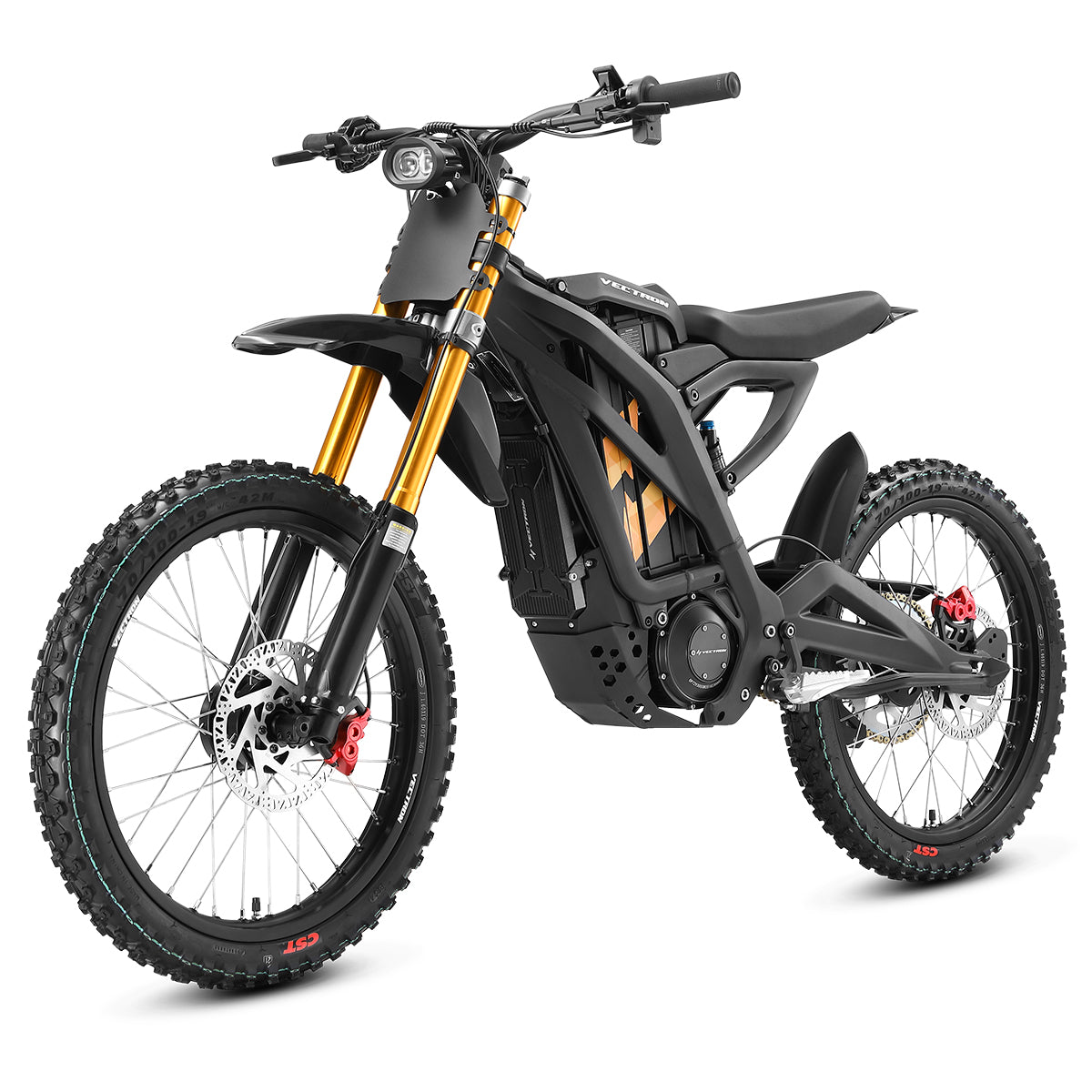

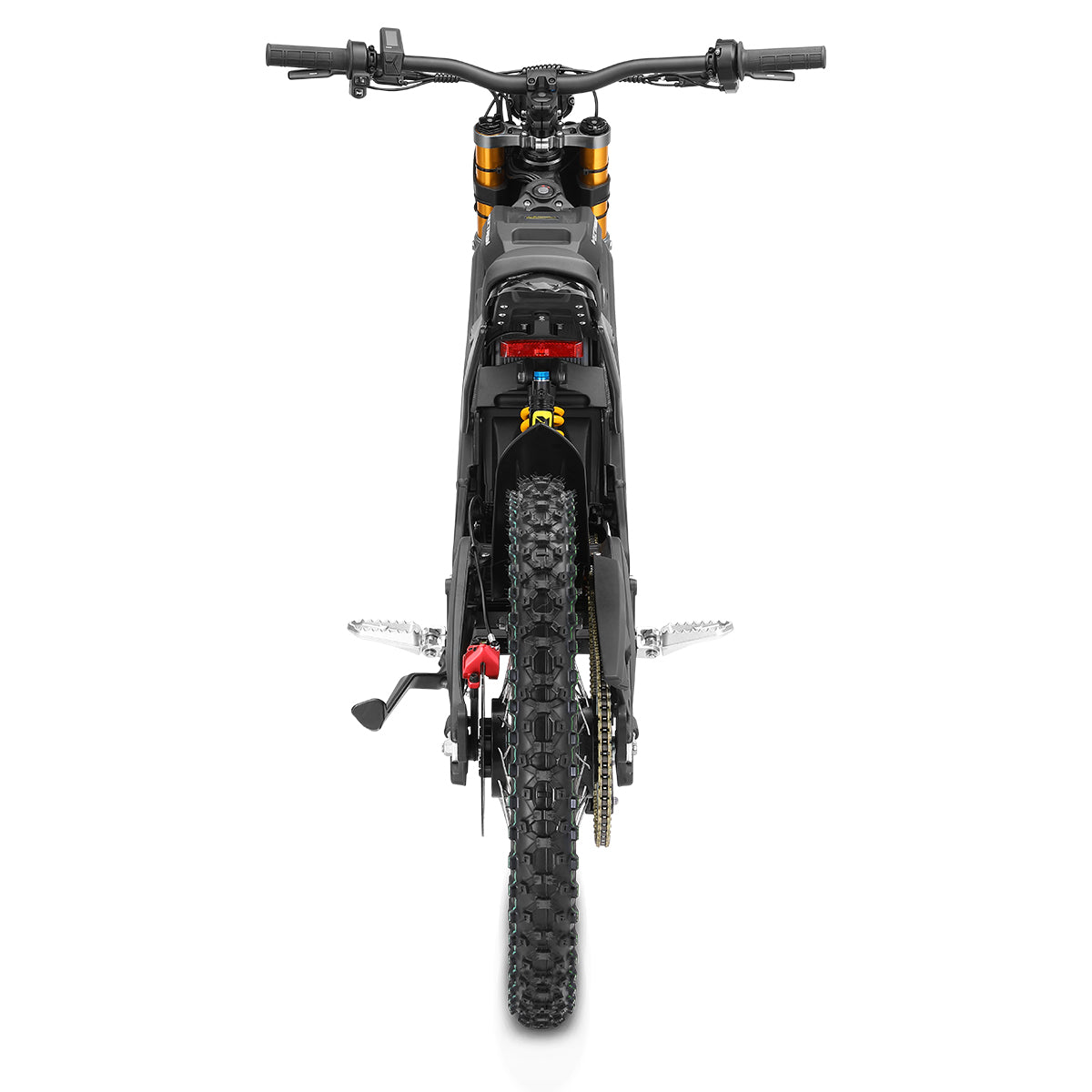

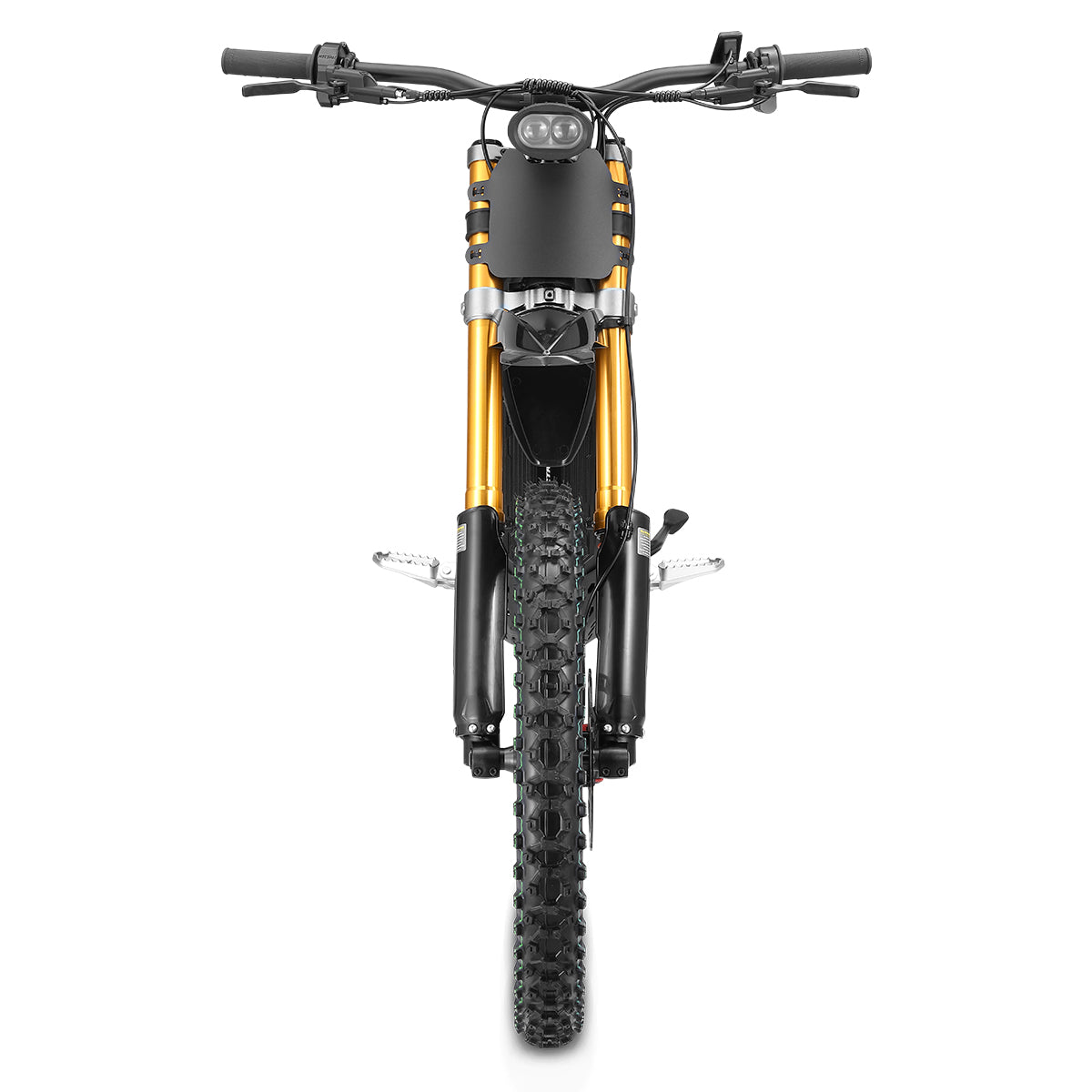

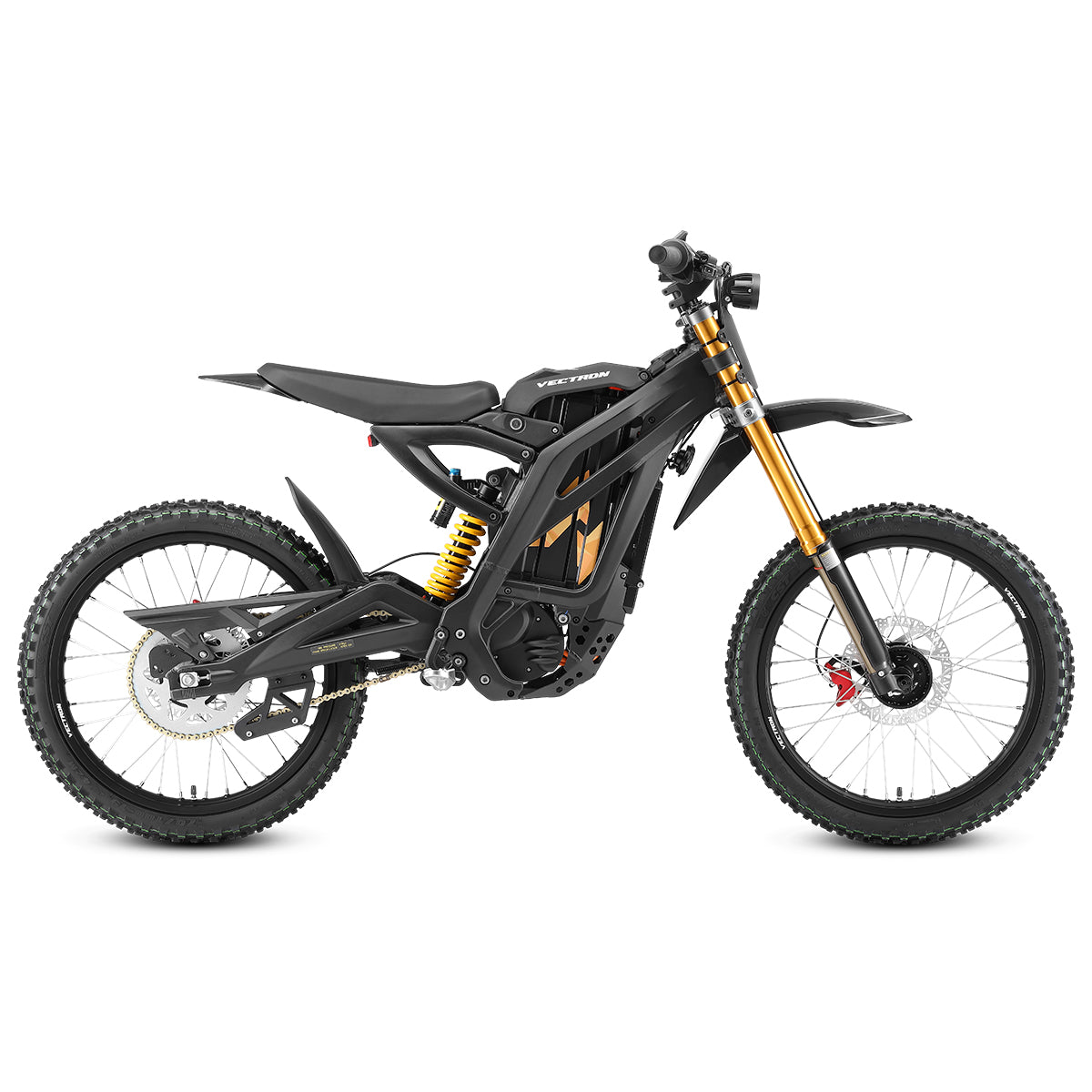

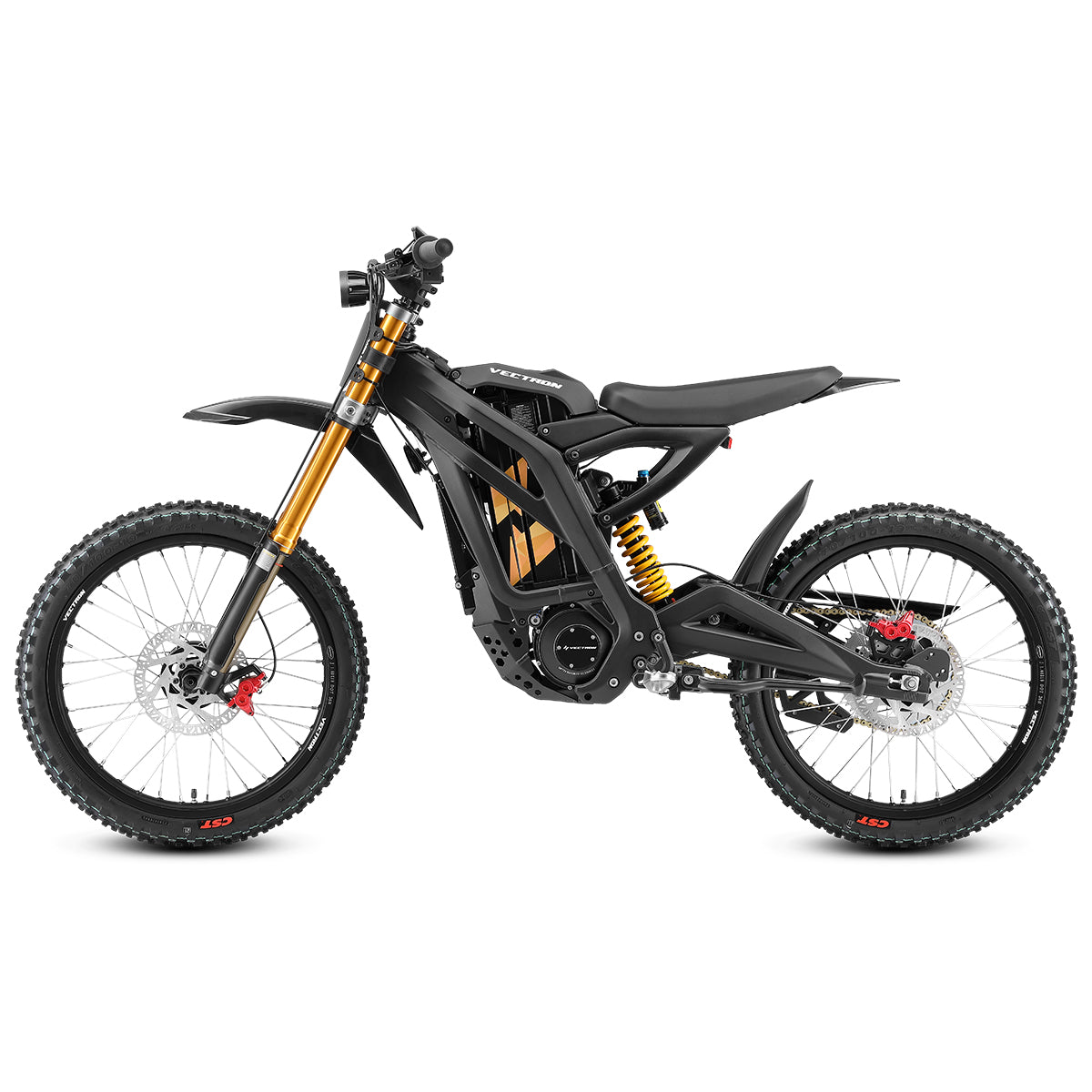

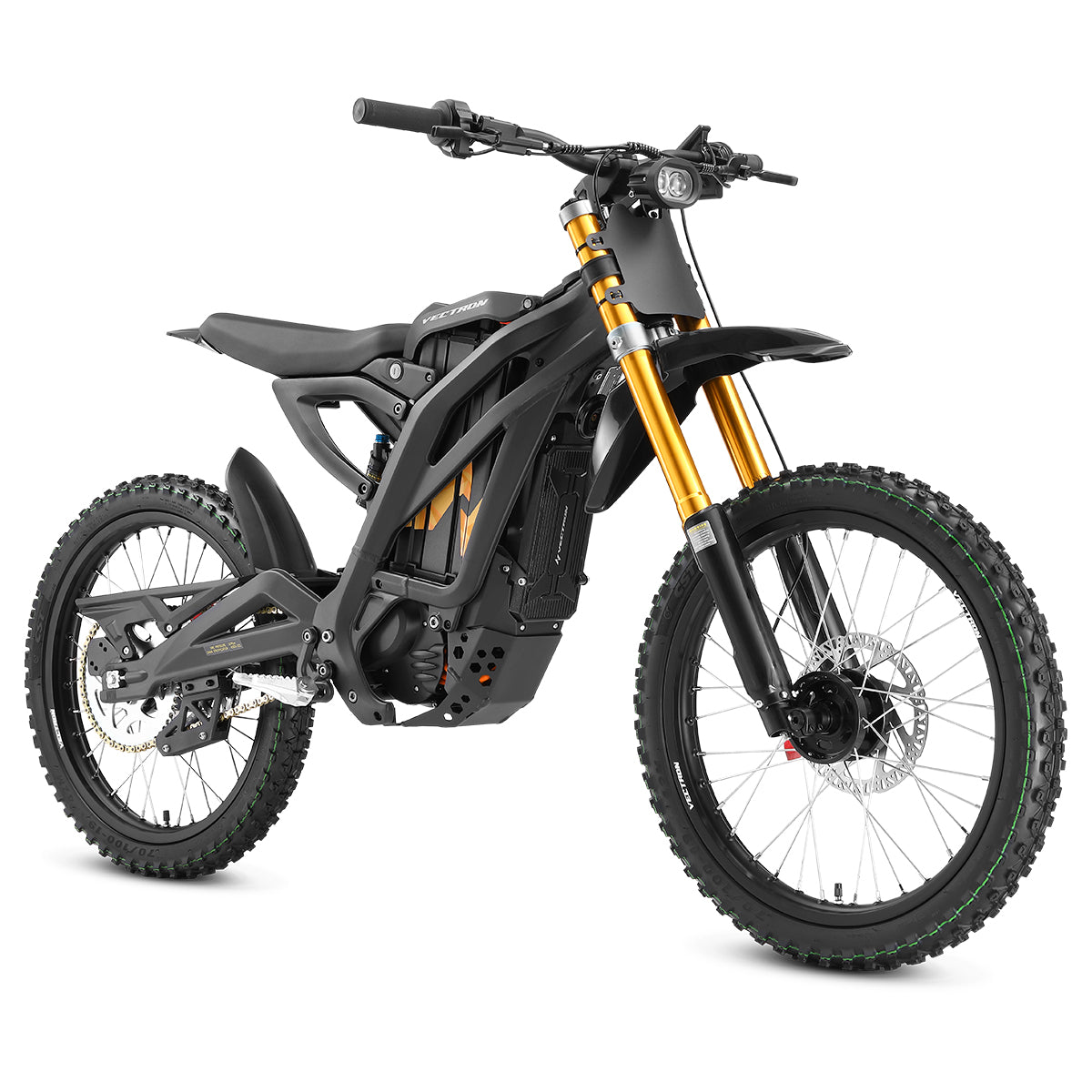

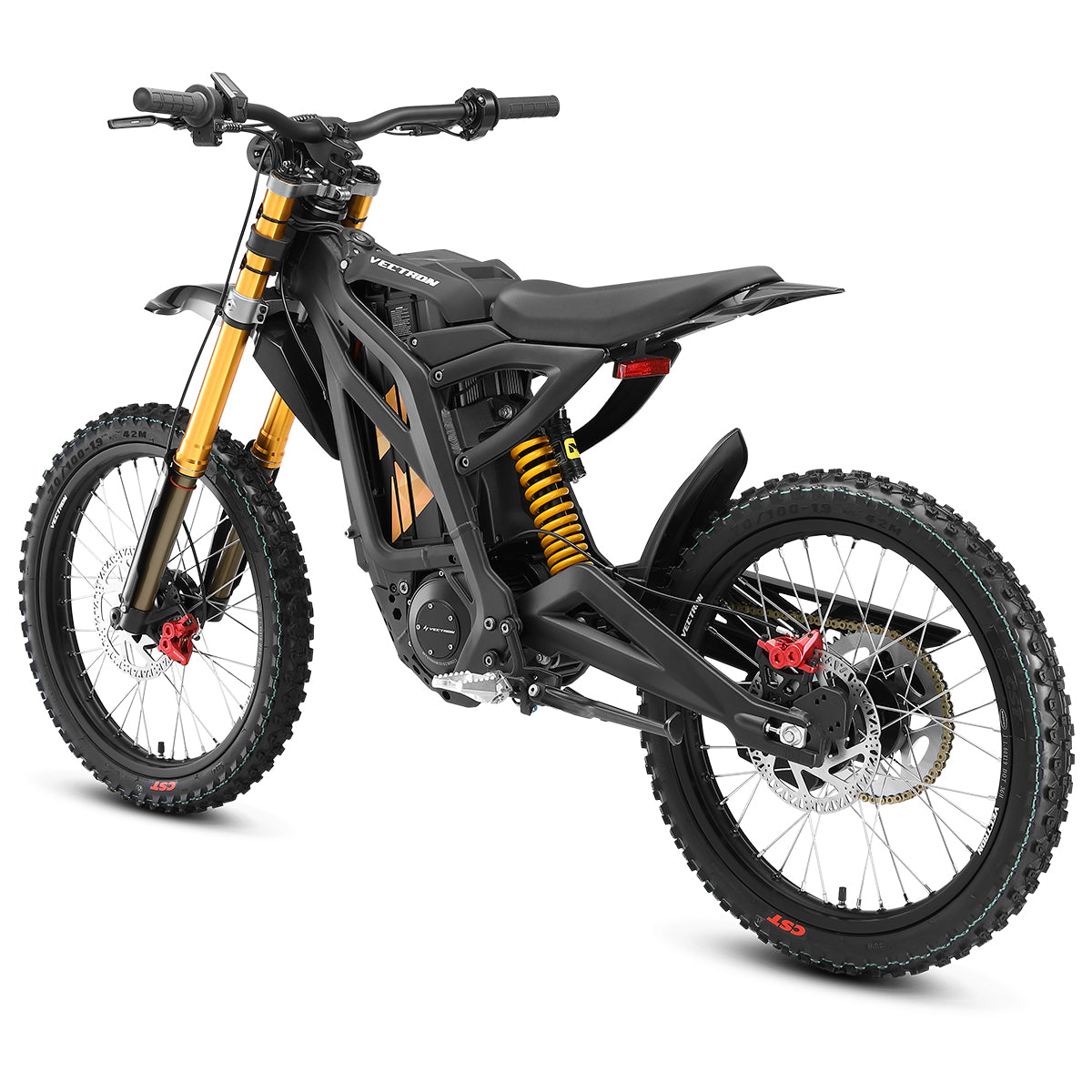

Vectron V1 Electric Dirt Bike
Vectron V1 Electric Dirt Bike
Regular price
$5,499.00
Sale price
$5,499.00
Regular price
$9,398.00
Unit price
per
REVIEWS
QTY
Couldn't load pickup availability
Still unsure on what bike frame to get? Check out our recommended size guide or contact us via live chat or 1300 310 493 number to talk to our friendly staff for the best option.
CHECK YOUR DELIVERY
GO
WANT TO PICKUP?
Click here to check availability
*Images provided are for reference only. Actual product may vary.
Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.
This product requires assembly
We provide easy step by step instructions & supporting video tutorials to help you with assembly & adjustments. If you are unfamiliar with assembling or adjusting Bicycles or Tricycles, or find it difficult to assemble or adjust with the instructions supplied, we strongly recommend that this product is built by an experienced bike mechanic. Any damage resulting from improper assembly will not be covered by warranty. See Assembly details
Before you ride
All electric bikes, tricycles and dirt bikes sold on Progearbikes.com.au are intended primarily
for private recreational use on private property only, unless otherwise permitted by relevant
state or territory laws. It is your sole responsibility to check and ensure that the product you
are purchasing is compliant for use on public roads, in accordance with the local laws and
regulations of your area.
More information, click here
Pick Up Availability
Click & Collect
Please see below for all Click & Collect locations. Place an order online, get notified and pick up the order at your convenience.
| Broadmeadows, VIC | Willawong, QLD *Pre-Booked Pick Ups Only |
Click here for more details on Click & Collect and Pick Up
Bike Size Guide
How Progear Works
Order Online
Click & Collect
Easy Assemble
Video instructions included
Done!
Ride your new bike!
LIGHTWEIGHT
FORGED ALLOY
6KW HIGH-TORQUE
MID-DRIVE MOTOR
HYDRAULIC
DISC BRAKES
74V 34AH LG
LITHIUM BATTERY
An Unbreakable Off-Road Weapon
The Vectron V1 is a heavy-duty off-road tool that delivers huge power, shock absorption and weight bearing capacity. It has a range of off-road capabilities, including Hard Enduro riding and farming/utility work with the ability to handle heavy loads and an aggressive riding style.
Maximum Frame Strength, Built to Last
Higher Safety Dynamic Margin
A rider landing a jump creates a dynamic load that multiplies their weight by three or four times. The Vectron's frame is engineered to absorb these violent, sudden spikes for a higher Dynamic Safety Margin.
Immunity to Metal Fatigue
Reduced stress and vibration protect the frame from metal fatigue (micro-strains in the metal over time) for a longer typical lifespan.
Elimination of Frame Flex
The high yield frame eliminates frame flex, transferring lateral stress to the suspension for tracking that's more predictable and precise.
A 74V System for Sustained Performance
The 74V system gives you a huge edge in performance, creating efficient power delivery for cooler operation, reduced "voltage sag" and 100km max range.
Reduced Voltage Sag
Standard 60V systems suffer from reduced power and torque when the battery drops below 50%, known as "voltage sag". A 74V system maintains power and torque much deeper into the charge cycle.
Avoids Overheating
The higher voltage also allows the Vectron to work harder with less current, avoiding overheating in the motor and wiring.
Superior Energy Density
The total energy capacity reaches around 2,516Wh for a max range of 100km on flat ground.
High Torque for Power and Control
With 380Nm of torque, the Vectron excels at technical off-road riding. The high torque generates precise control, allowing you to crawl at lower speeds without jerky stalling or a slipped clutch. This also means it can maintain acceleration even with a heavy load.
Removable Lithium Battery
Go further with a 74V 34Ah LG lithium battery that recharges in just 3 hours. Easily remove and charge anywhere.
Quiet, Eco-Friendly Ride
Zero emissions and minimal noise mean you can ride freely with peace of mind.

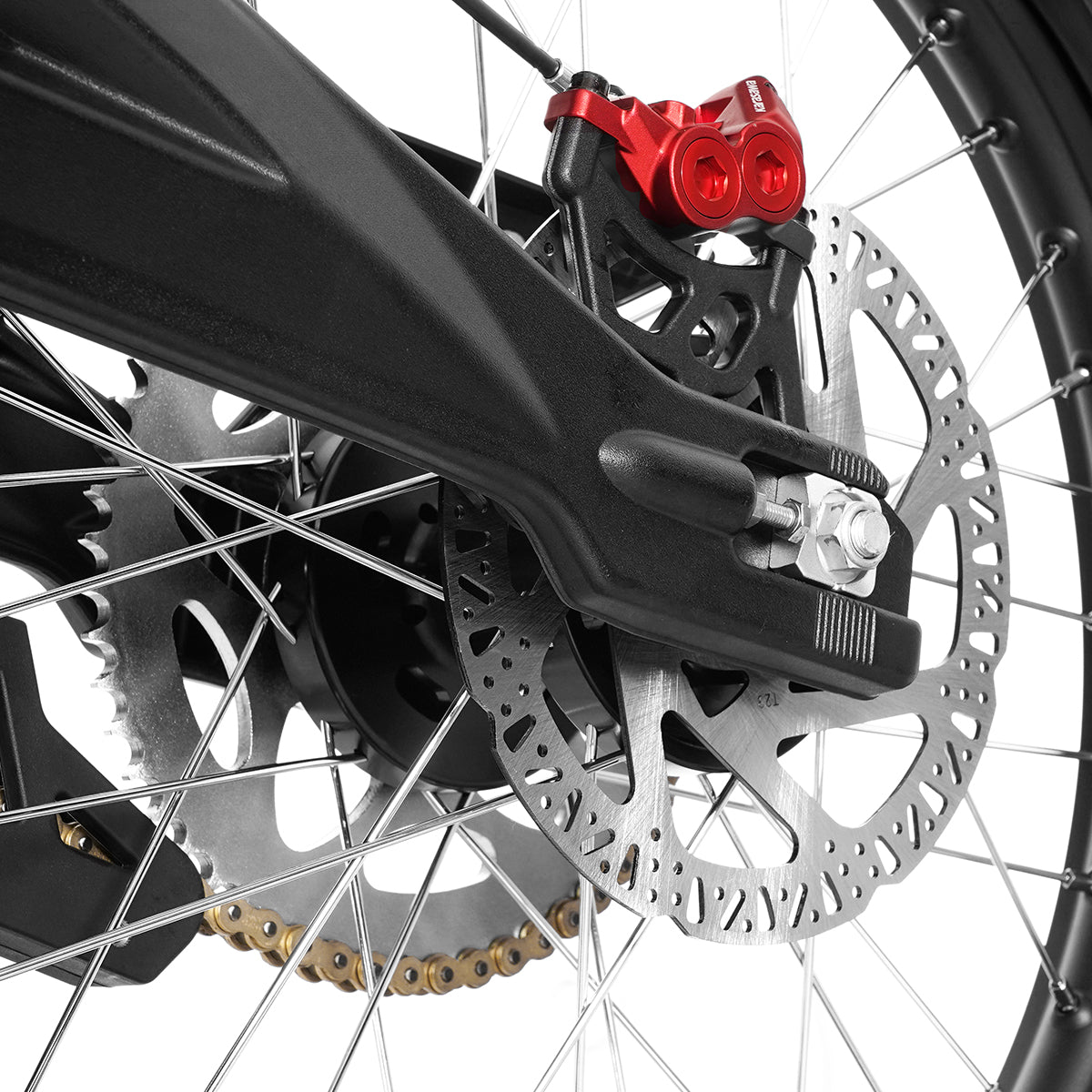

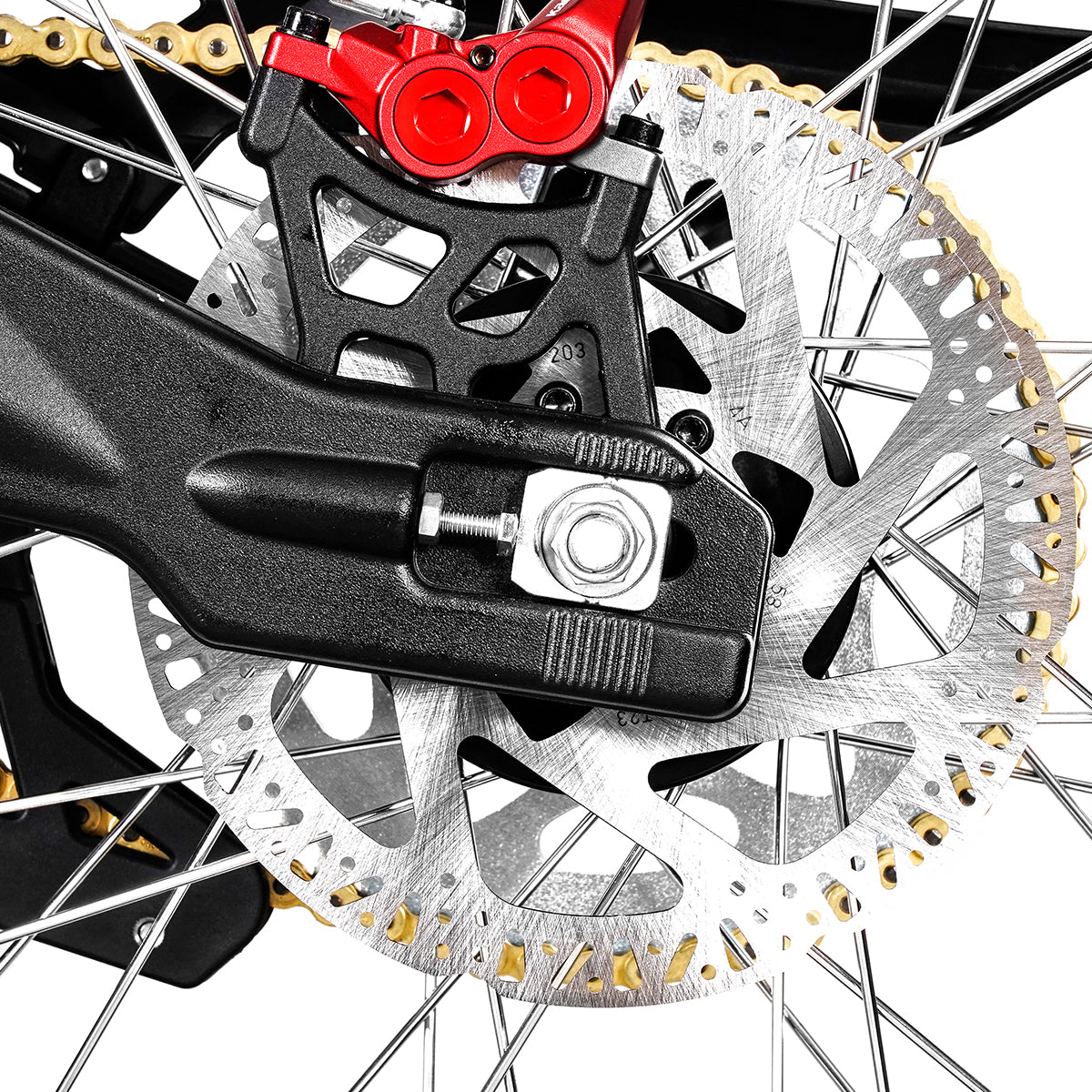

Hydraulic Disc Brakes
Four-piston callipers and 203mm rotors deliver consistent braking power for confident control in all conditions.
Advanced Weather Protection
The Vectron V1 is designed with efficient weather resistance. Can be ridden in rain, mud puddles and short-term wading through 20cm deep water.
Note: not designed for prolonged exposure in deep water, complete submersion or direct spraying of high-pressure hoses.
Specification
Technical Specifications
| Dimensions | 1855mm x 790mm x 1050mm (L x W x H) |
|---|---|
| Frame & Fork | 6061 Wrought Aluminum Alloy Welded Structure |

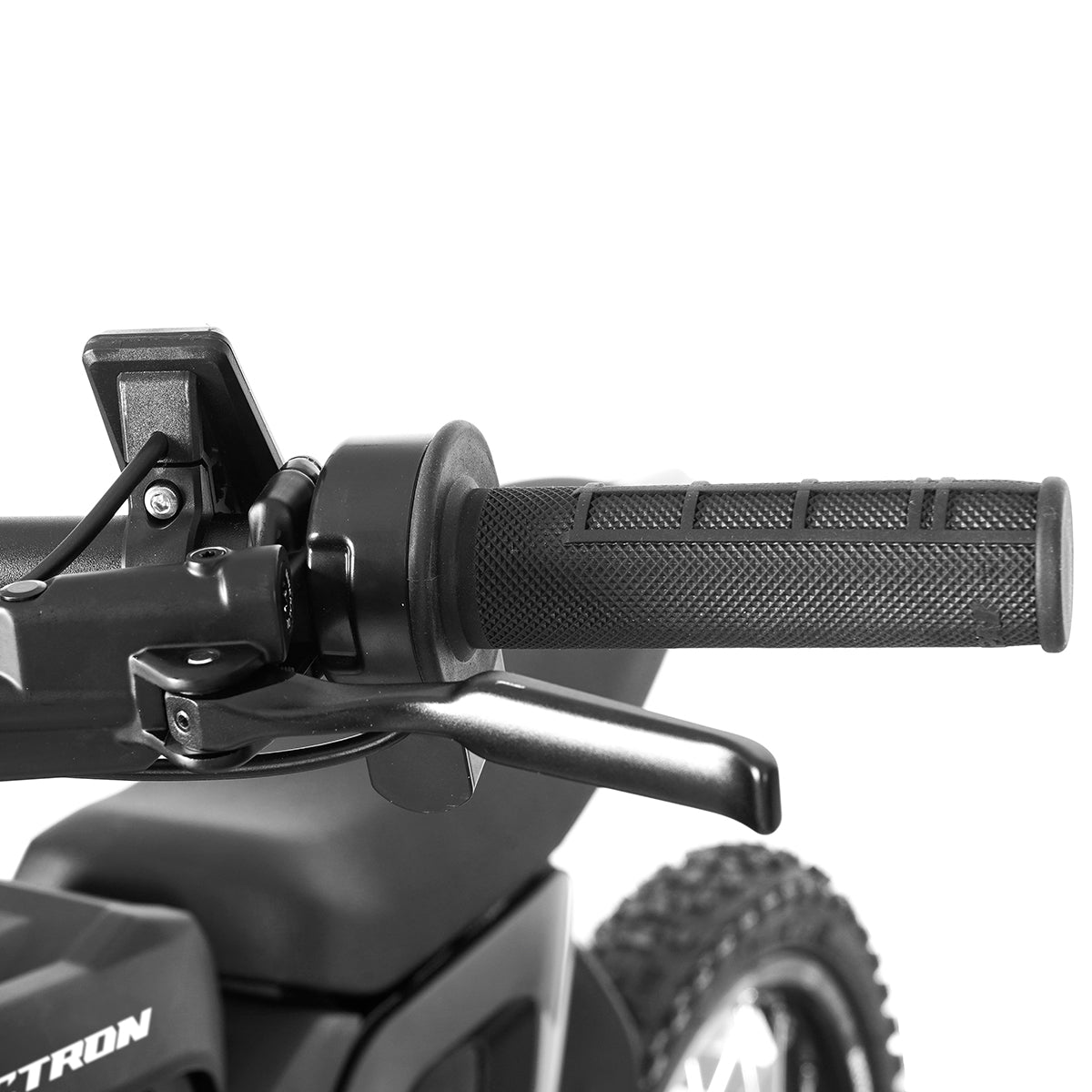

| Handlebar | 7075 alloy φ28.6 × 22.2mm |
| Battery Specifications | 73.6V 33.8Ah LG Cell |
| Battery Weight | 13.8kg |
| Motor Rated Power | 3.0kW |
| Motor Max Power | 6.0kW |
| Motor Max Speed | 6800rpm |
| Vehicle Power Mode | Manual push-button shift — 3x Gears |
| Max Speed | Gear 1 — 25km/h Gear 2 — 60km/h Gear 3 — 80km/h |
| Max Mileage on Flat Road | Greater than 100km @ 50km/h constant speed (75kg Rider) |
| Max Mileage Off Road | Greater than 40km @ full power (75kg Rider) |
| Max Climbing Angle | 45° |
| Max User Weight | 100kg |
| Chain Specifications | 420DX-122 |
|---|---|
| Wheelbase | 1250mm |
| Front/Rear Tire Size | 70/100-19 |
| Front/Rear Rim Specification | 7116 alloy 1.6-19 |
| Braking System | 4 Piston Hydraulic φ203 × 2.3mm disk |
| Front/Rear Braking Force | ≥500N |
| Seat Height | 830mm |
| Min Ground Clearance | 270mm |
| Shock Absorber | Left: Multi-stage spring inverted damping with adjustable precompression, 165mm stroke Right: Adjustable damping oil-gas composite inverted damping, 165mm stroke |
| Rear Suspension System | Lower rocker multi-link mechanism |

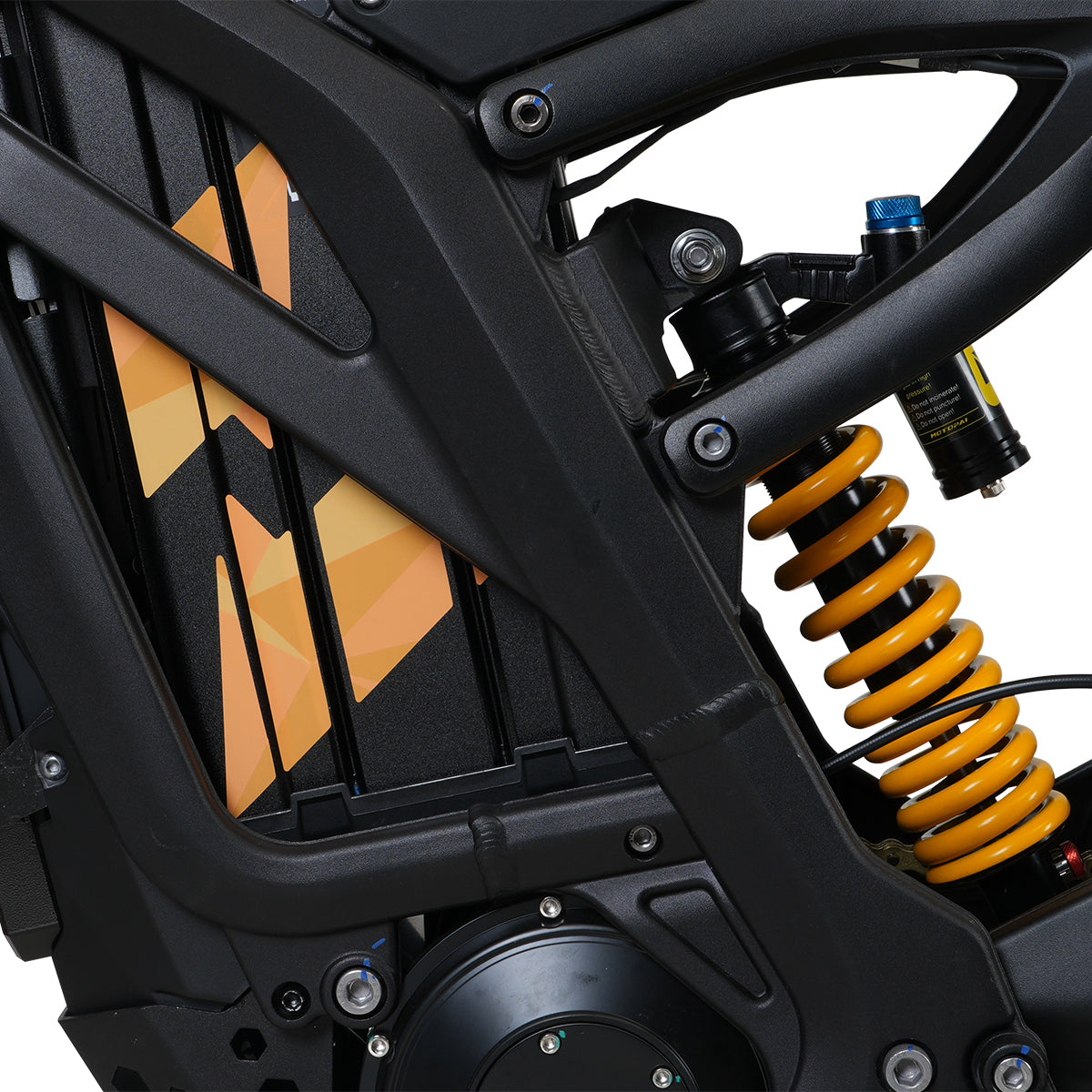

| Rear Shock Absorber | Adjustable damping oil-gas composite inverted damping, 165mm stroke |
| Rear Reduced Piston Rod Diameter | 12mm |
| Total Vehicle Weight | 62.8kg |
| Weather Resistance | Motor - IP55 Cable & Connector - IP55 Battery - IP67 Controller - IP67 |
*Images provided are for reference only. Actual product may vary.
Please note - Due to supplier shortages, we may supply you a product or its components from an equivalent or greater brand. For more details please contact us.
Warranty
- Lifetime warranty on Frame and Fork
- 12 Months Manufacturer's Warranty on all non-consumable components
- 12 Months Manufacturer's Warranty on all electrical components, such as motors, display or batteries.
- Consumable parts (including grips, tubes, tyres, cables, brake pads, saddle coverings, chain, spokes, cassettes and chain rings) are not covered by the warranty.
